Kia
›
2012
›
Forte LX, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System
›
CVVT Oil Control Valve (OCV)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

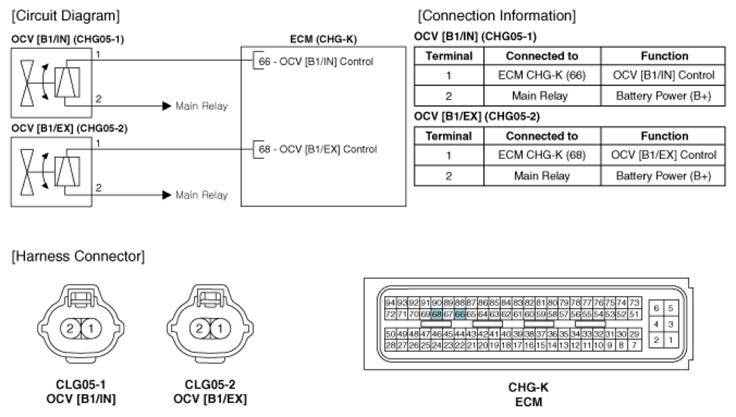

Fig 1: CVVT Oil Control Valve - Circuit Diagram & Connector Terminal Identification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
