Canister Close Valve (CCV)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

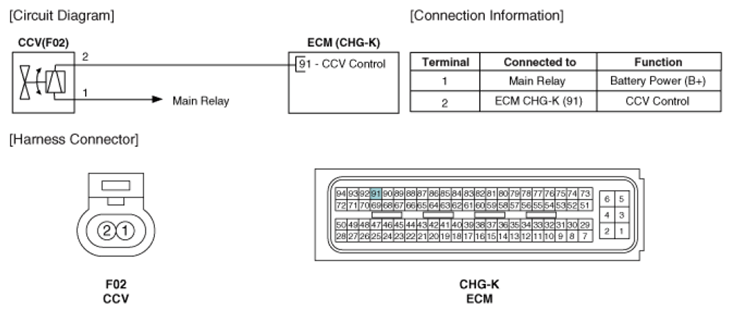

Fig 1: Canister Close Valve - Circuit Diagram & Connector Terminal Identification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
