Kia
›
2012
›
Forte LX, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System
›
Crankshaft Position Sensor (CKPS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

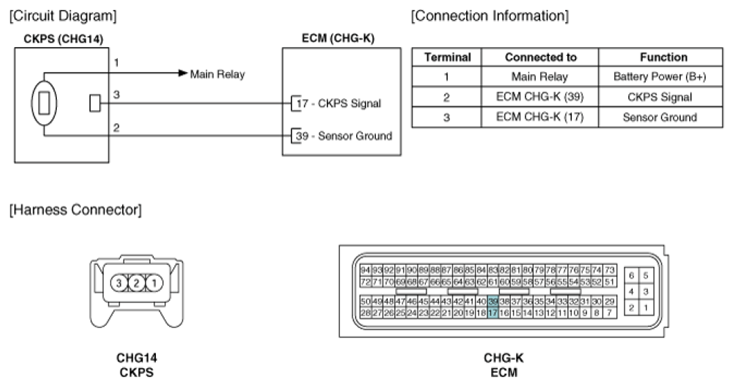

Fig 1: Crankshaft Position Sensor - Circuit Diagram & Connector Terminal Identification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
