Forte LX, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System
›
ETC (Electronic Throttle Control) System
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

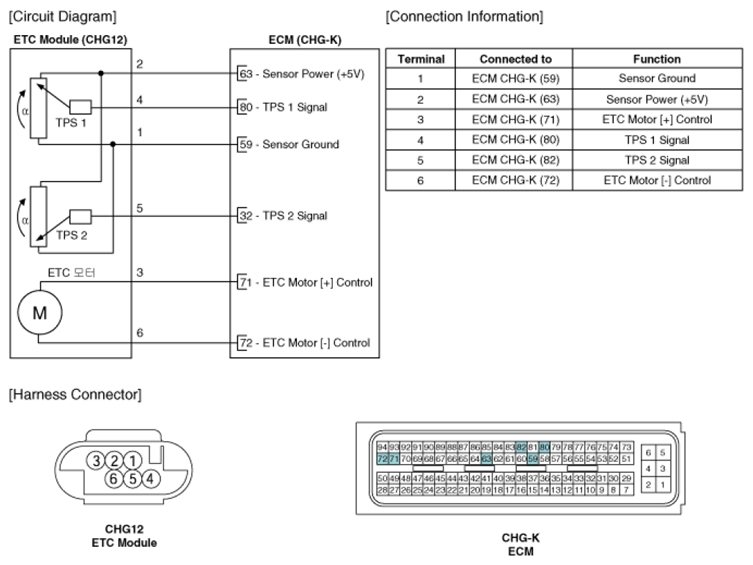

Fig 1: ETC Module - Circuit Diagram & Connector Terminal Identification
