Manifold Absolute Pressure Sensor (MAPS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

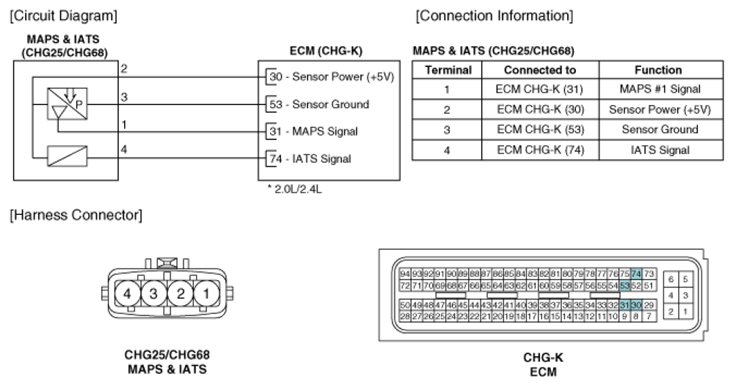

Fig 1: Manifold Absolute Pressure Sensor - Circuit Diagram & Connector Terminal Identification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
