Repair procedures: Replacement: Removal

WARNING: This page is about a different car, the 2013 Kia Forte Koup and 2012 Kia Forte Koup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Use seat covers to avoid damaging any surfaces.

Remove the following items.
1. Front pillar trim, both sides.
2. Windshield wiper arms and cowl cover. Refer to REMOVAL .

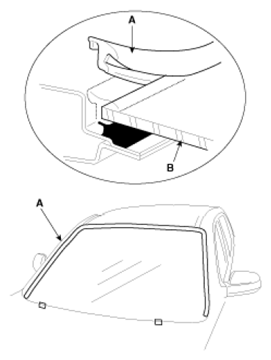

Remove the windshield glass molding (A) from the edge of the windshield (B). If necessary, cut the molding with a utility knife.
Remove the spacer.

Fig 1: Windshield Glass Molding & Windshield
Courtesy of KIA MOTORS AMERICA, INC.
Cut out the windshield sealant using the sealant cutting tool (A) (09861-31100).

Fig 2: Cutting Windshield Sealant With Sealant Cutting Tool
Courtesy of KIA MOTORS AMERICA, INC.
Remove the windshield (B) carefully using the glass holder (A).

Fig 3: Removing Windshield With Glass Holder

Courtesy of KIA MOTORS AMERICA, INC.
