Repair procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad.

    Refer to CRASH PAD or CRASH PAD .

  3. Disconnect the connector of in-car sensor (A). Loosen the mounting 2 screws and then remove the in-car sensor.

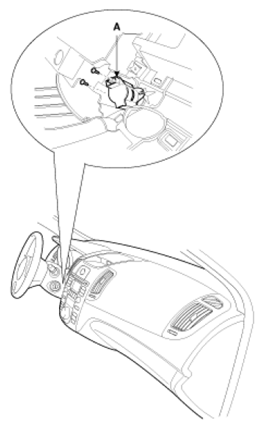

    Fig 1: Identifying Connector Of In-Car Sensor
    G07369598Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse order of removal.
