Components and Components Location: Components

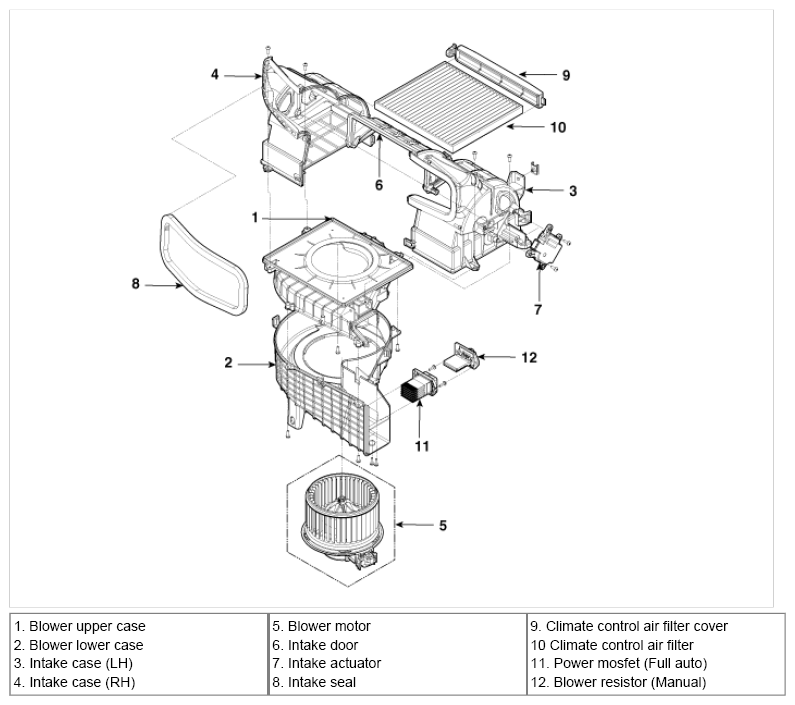

Fig 1: Exploded View Of Blower Unit
G07369631Courtesy of KIA MOTORS AMERICA, INC.
