Repair procedures: Replacement

  1. Remove the sub frame. Refer to FRONT STABILIZER .

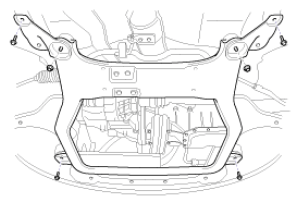

    Fig 1: Front Cross Member With Bolts
    G07368139Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the front lower arm.
  3. Remove the front strut assembly.
  4. Remove the front stabilizer.
  5. Remove the steering gear box.
  6. Installation is the reverse of removal.
