Components and Components Location
›
Components Location
Components Location

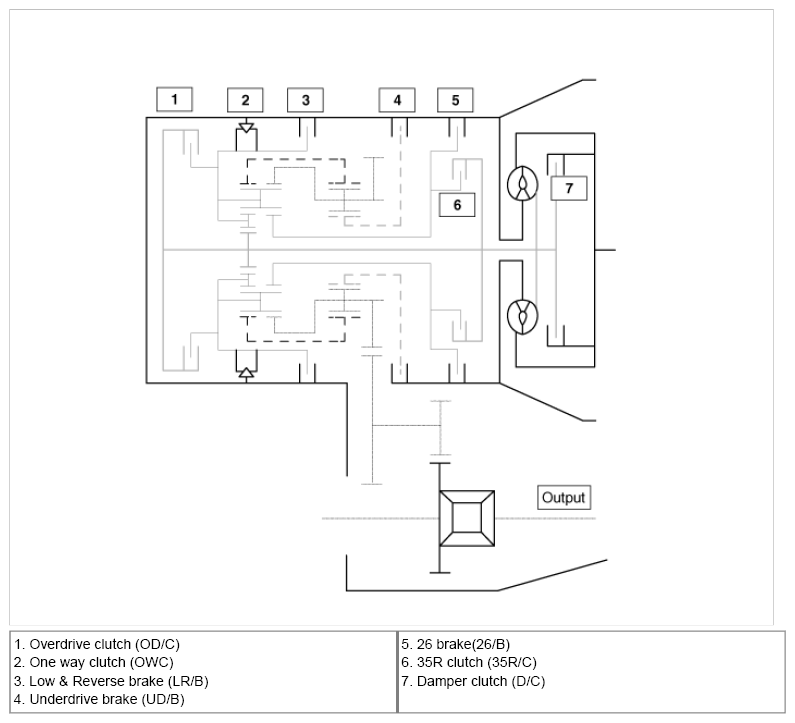

Fig 1: Outline Of 6-Spd Automatic Transaxle System
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
