Components And Components Location: Components

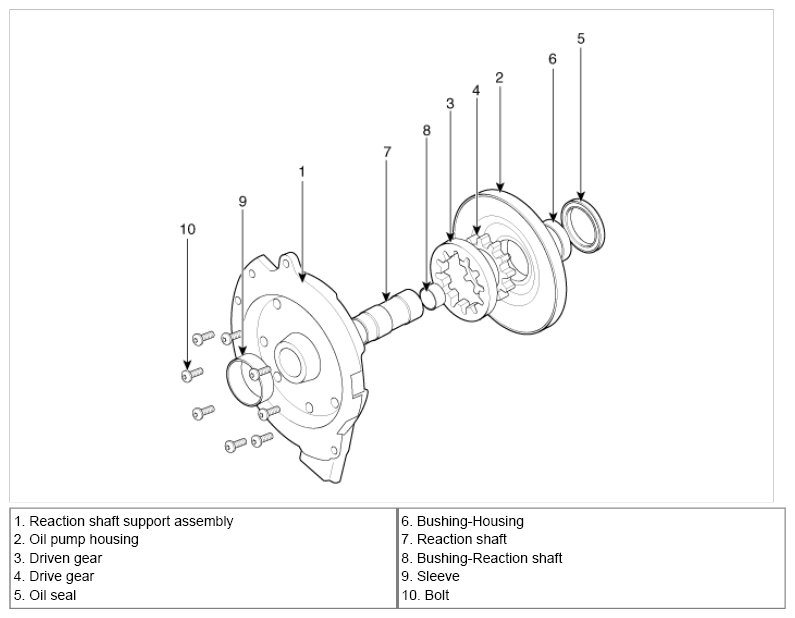

Fig 1: Exploded View Of Oil Pump
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
