Kia
›
2012
›
Forte LX, Automatic Trans
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Automatic Transaxle Control System
›
Input Speed Sensor
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

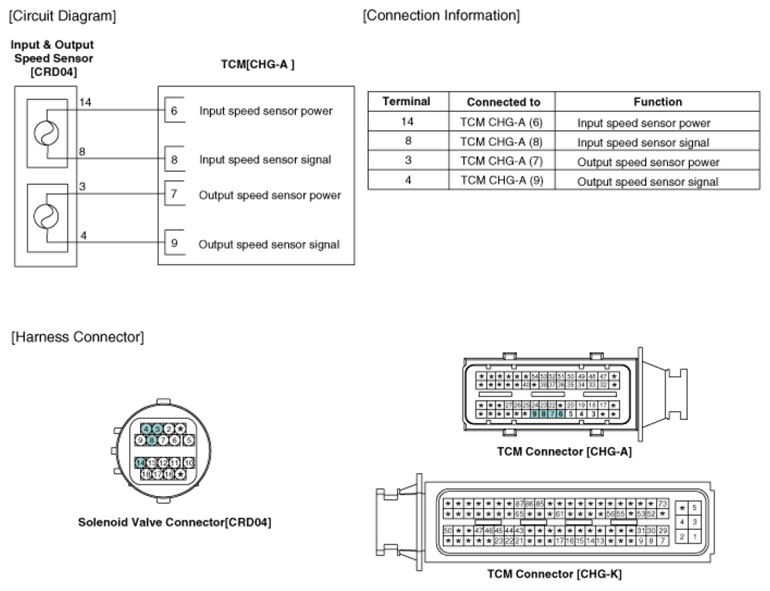

Fig 1: Input Speed Sensor Circuit Diagram & Connector Terminal Identification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
