Electro Chromic Inside Rear View Mirror
›
Components and Components Location
›
Components
Components and Components Location: Components

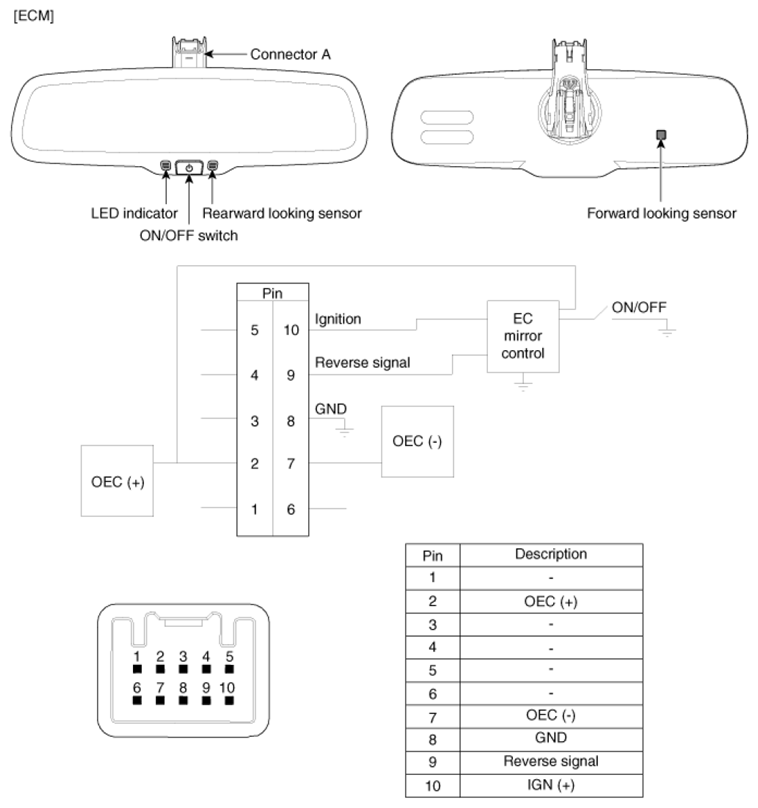

Fig 1: Electro Chromic Inside Rear View Mirror Components & Connector Terminal Identification
Courtesy of KIA MOTORS AMERICA, INC.

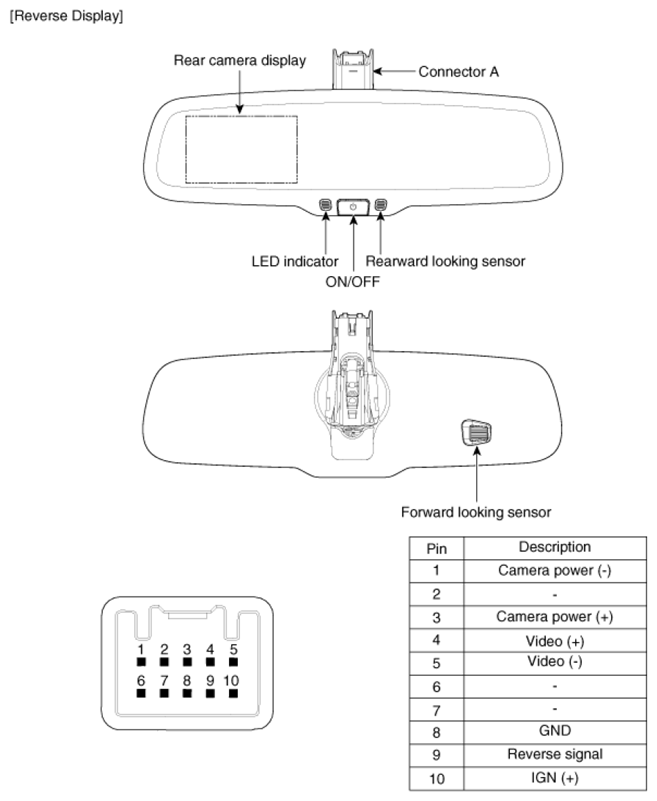

Fig 2: Electro Chromic Inside Rear View Mirror Components & Connector Terminal Identification (Reverse Display)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
