Passenger Power Window Switch
Passenger Power Window Switch

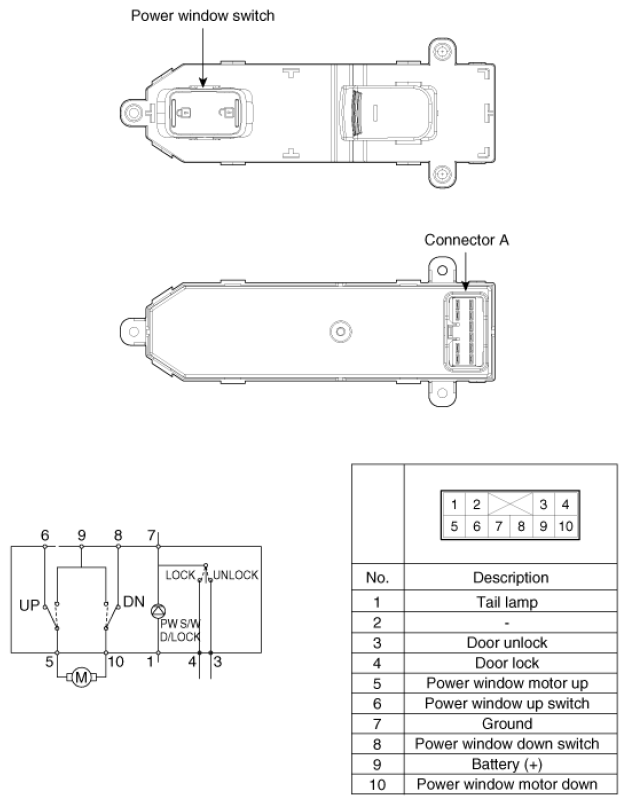

Fig 1: Passenger Power Window Switch - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
