Rear Power Window Switch
Rear Power Window Switch

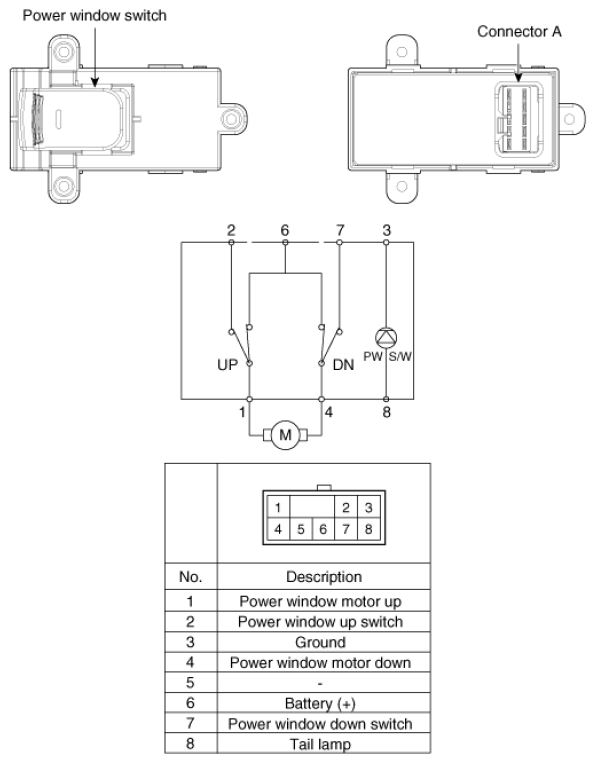

Fig 1: Rear Power Window Switch - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
