Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - HEV
›
Accelerator Position Sensor (APS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

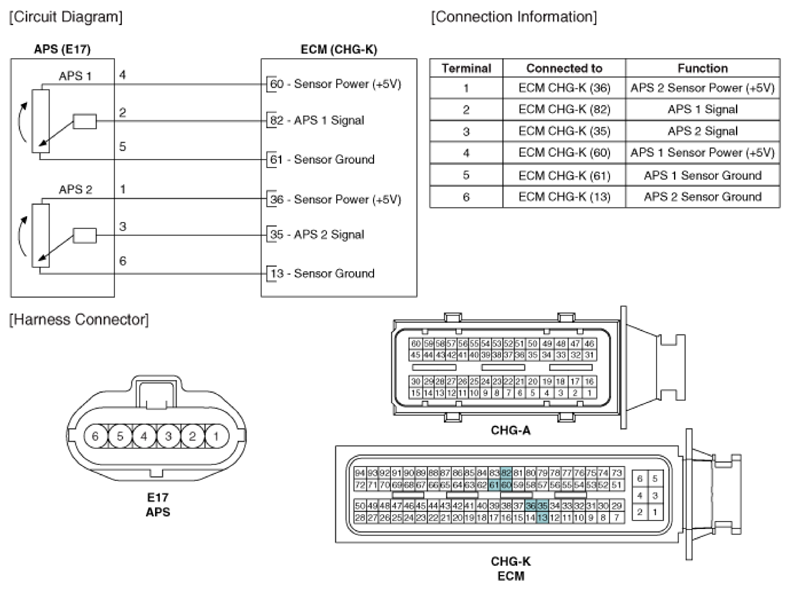

Fig 1: APS (E17) And ECM (CHG-K) - Circuit Diagram With Connector Terminals End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
