Camshaft Position Sensor (CMPS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

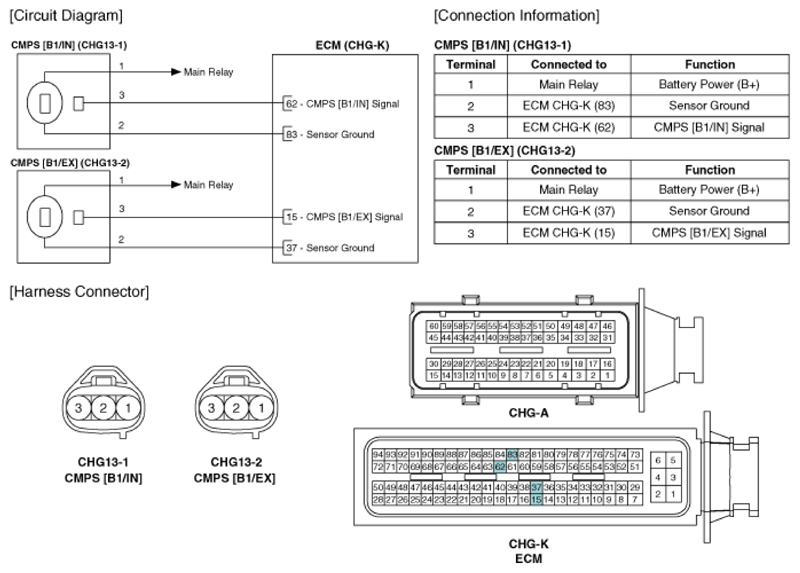

Fig 1: CMPS (CHG13-1 And CHG13-2) And ECM (CHG-K) - Circuit Diagram With Connector Terminals End View
