Engine Control System - HEV
›
Heated Oxygen Sensor (HO2S)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

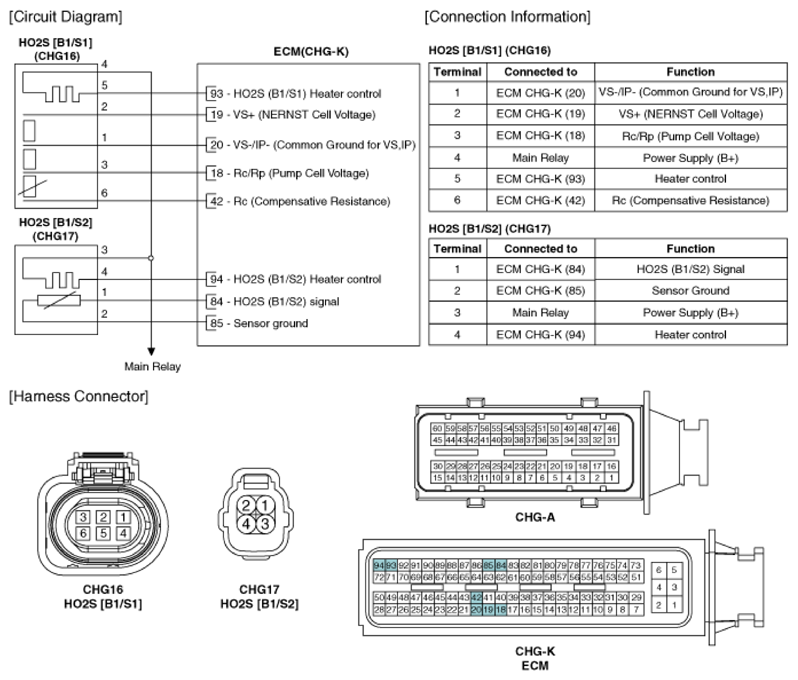

Fig 1: HO2S And ECM (CHG-K) - Circuit Diagram With Connector Terminals End View
