Kia
›
2012
›
Optima Hybrid
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - HEV
›
Manifold Absolute Pressure Sensor (MAPS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

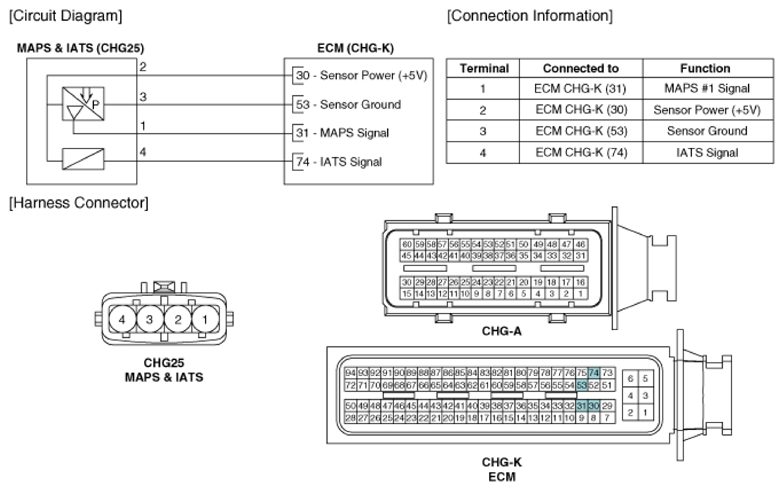

Fig 1: MAPS And IATS (CHG25) And ECM (CHG-K) - Circuit Diagram
