Automatic Transaxle Control System - HEV
›
Inhibitor Switch
›
Repair procedures
›
Inspection
›
Signal Code
›
Notes
Signal Code: Notes
P
P-R
R
R-N
N
N-D
D
Signal "1"
12V
12V
0
0
0
0
0
Signal "2"
0
12V
12V
12V
0
0
0
Signal "3"
0
0
0
12V
12V
12V
0
Signal "4"
0
0
0
0
0
12V
12V

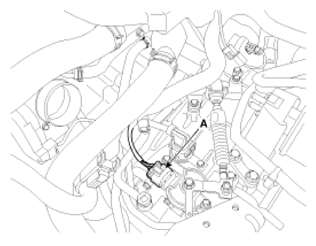

Fig 1: Locating Inhibitor Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
