Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Automatic Transaxle Control System - HEV
›
Input Speed Sensor
›
Troubleshooting
›
Signal Waveform
Signal Waveform

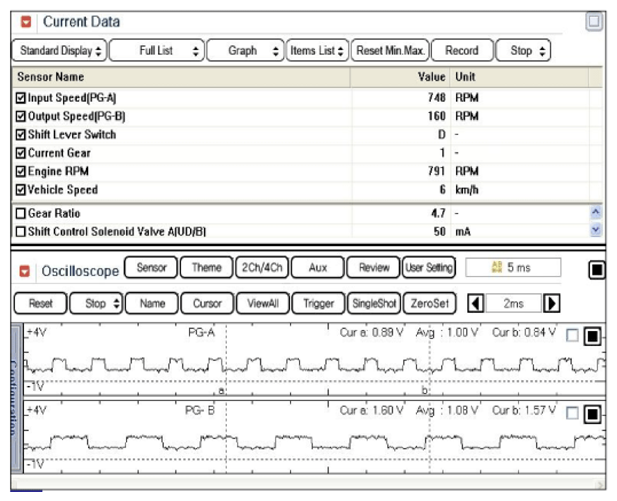

Fig 1: Input/Output Speed Sensor Signal Waveform (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

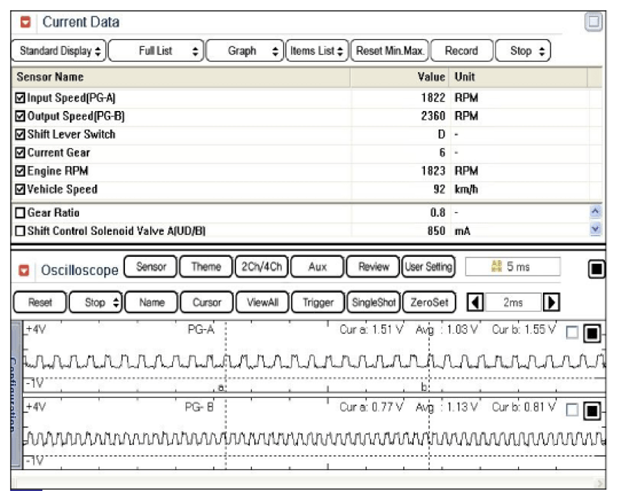

Fig 2: Input/Output Speed Sensor Signal Waveform (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
