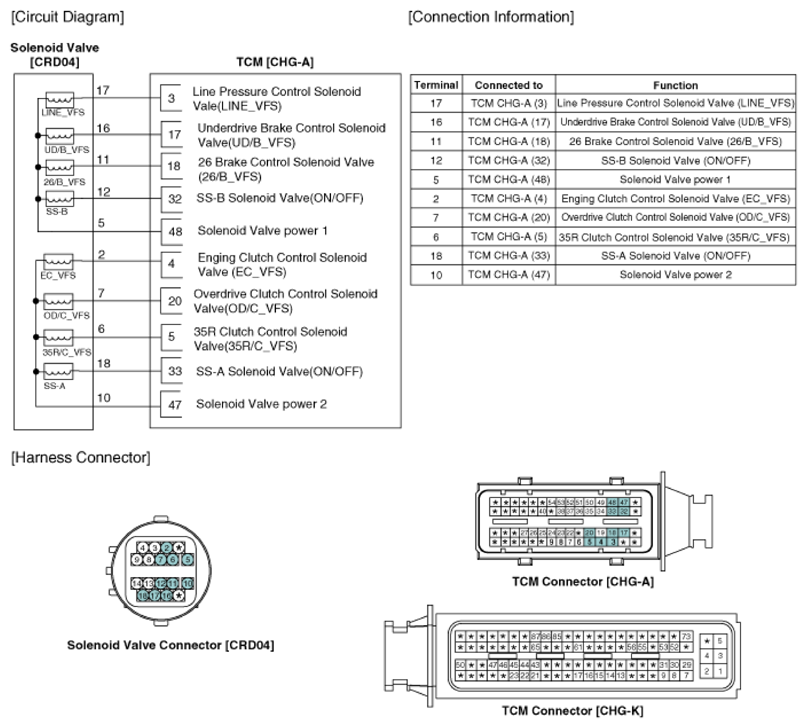

Home › Kia › 2012 › Optima Hybrid › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - HEV › Line Pressure Control Solenoid Vale › Schematic Diagrams › Circuit Diagram
