Automatic Transaxle Control System - HEV
›
Output Speed Sensor
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

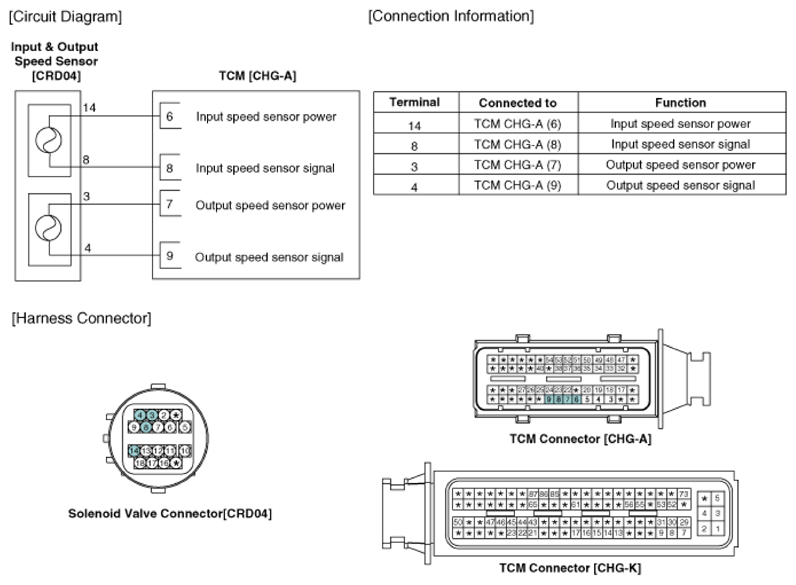

Fig 1: Input&Output Speed Sensor Circuit Diagram
