Automatic Transaxle Control System - HEV
›
Output Speed Sensor
›
Troubleshooting
›
Signal Waveform
Signal Waveform

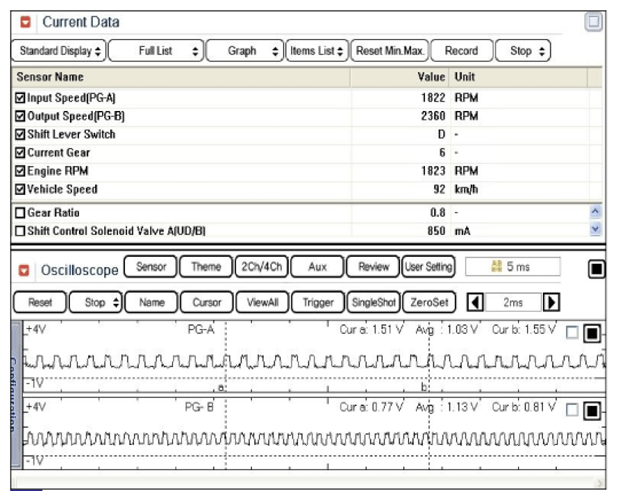

Fig 1: Input&Output Speed Sensor Signal Waveform (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

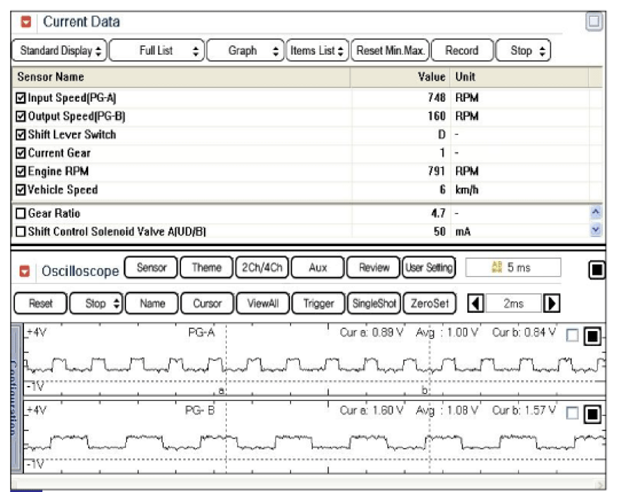

Fig 2: Input&Output Speed Sensor Signal Waveform (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
