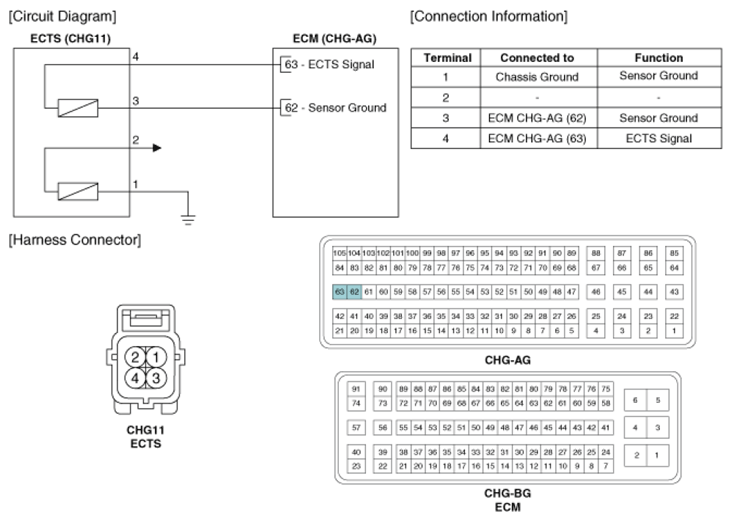

Home › Kia › 2012 › Optima LX, Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.4L - Except HEV › Engine Coolant Temperature Sensor (ECTS) › Schematic Diagrams › Circuit Diagram
