Repair Procedures: Adjustment

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Operate the horn, and adjust the tone to a suitable level by turning the adjusting screw.

NOTE: Horn adjustment screw is automatically sealed with silicon sealant. The shape and size of the applied sealant is variable and tails or dribbles are acceptable and not to be tampered with.

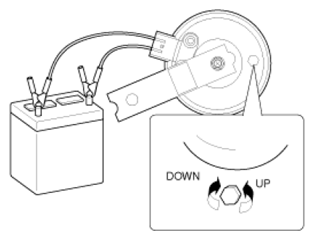

Fig 1: Identifying Adjusting Screw Turning Direction

Courtesy of KIA MOTORS AMERICA, INC.
