Harness Connector

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

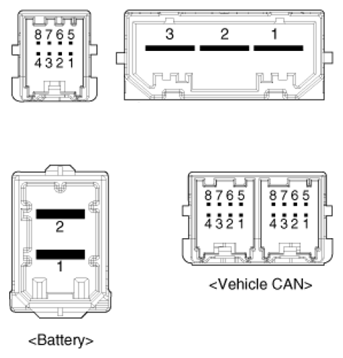

Fig 1: Steering System Harness Connector End Views

Courtesy of KIA MOTORS AMERICA, INC.

PIN DESCRIPTION CHART

Type	Pin No	Description
Battery	1	Battery -
Battery	2	Battery +
Vehicle	1	IGN
	2	-
	3	-
	4	-
	5	-
	6	-
	7	High_CAN
	8	Low_CAN
