Chart 1

WARNING: This page is about a different variant/trim than selected.

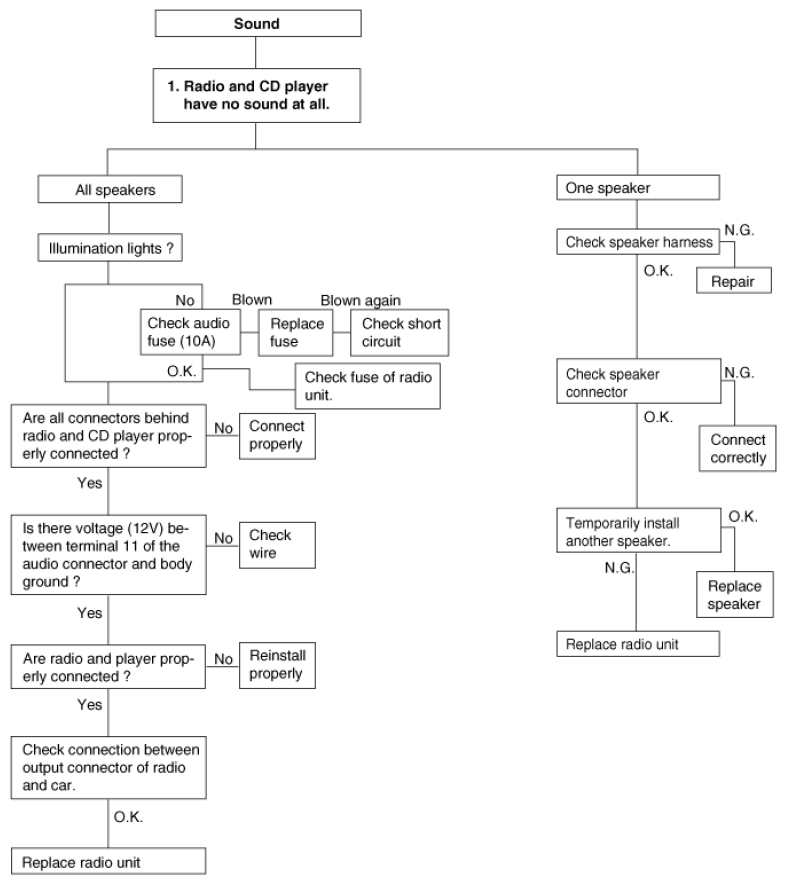

Fig 1: Troubleshooting Work Flow Chart - Sound (Radio And CD Player Have No Sound)

Courtesy of KIA MOTORS AMERICA, INC.

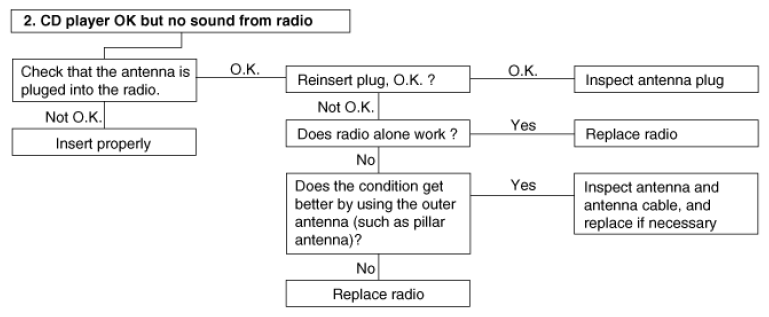

Fig 2: Troubleshooting Work Flow Chart - Sound (CD Player Ok But No Sound To Radio)

Courtesy of KIA MOTORS AMERICA, INC.
