Chart 7

WARNING: This page is about a different variant/trim than selected.

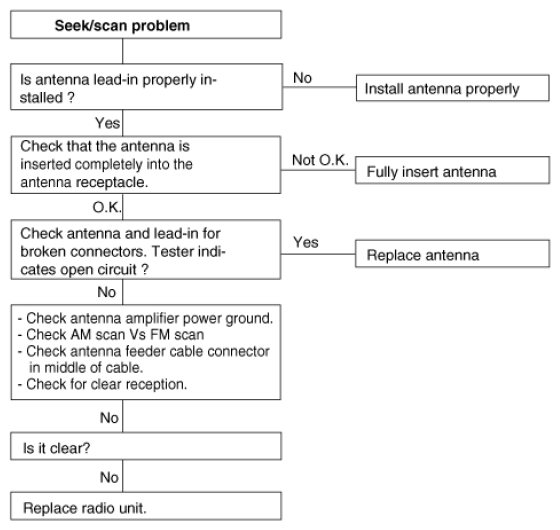

Fig 1: Troubleshooting Work Flow Chart (Seek/Scan Problem)
G08308982Courtesy of KIA MOTORS AMERICA, INC.
