Repair procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative(-) battery terminal.
Remove the glove box.
(Refer to the "CRASH PAD ")
Disconnect the fob holder connector (A).

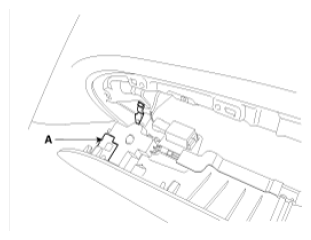

Fig 1: Identifying Holder Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fob holder (A) after removing the screws.

Fig 2: Identifying Fob Holder
Courtesy of KIA MOTORS AMERICA, INC.
