Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

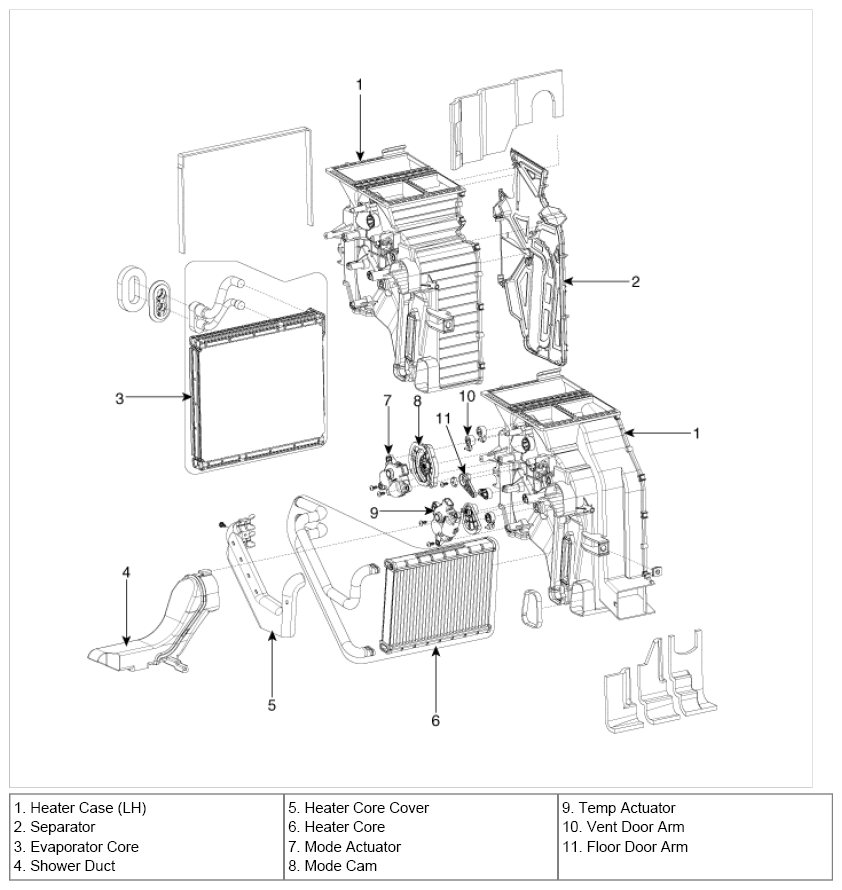

Fig 1: Identifying Heater Unit Components (1 Of 2)
G08309685Courtesy of KIA MOTORS AMERICA, INC.

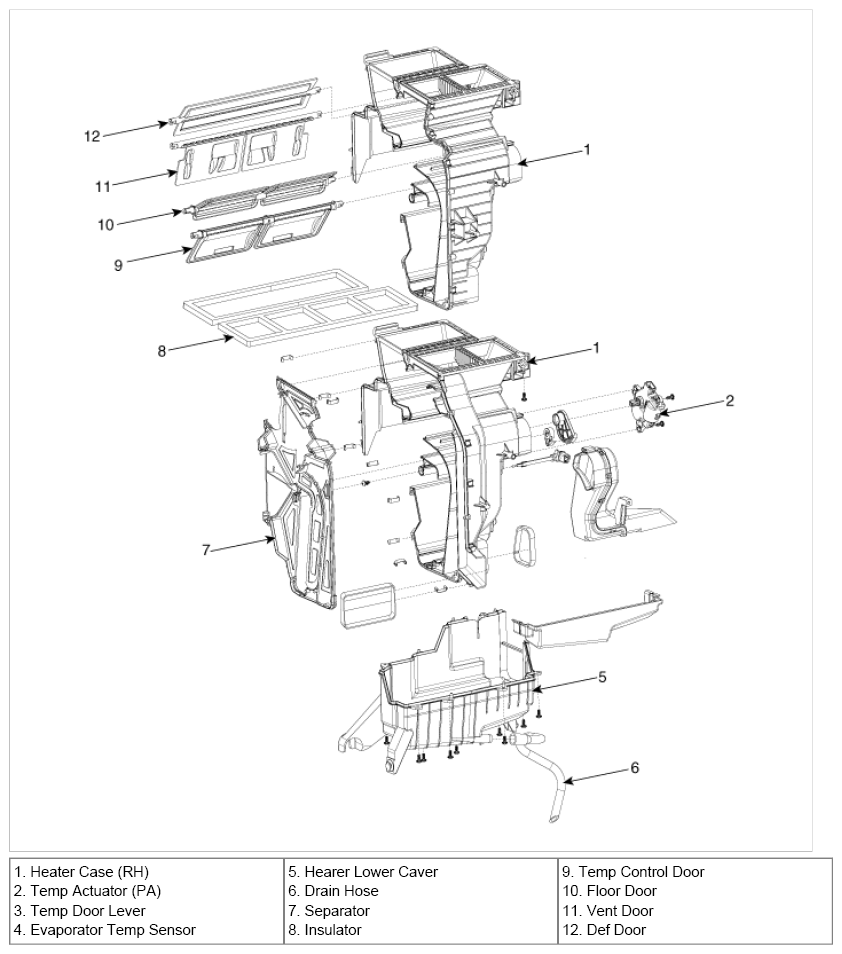

Fig 2: Identifying Heater Unit Components (2 Of 2)
G08309686Courtesy of KIA MOTORS AMERICA, INC.
