Repair procedures: Replacement

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative (-) battery terminal.

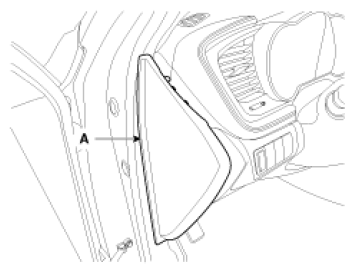

Using the screwdriver, remove the side cover (A).

Fig 1: Identifying Side Cover
Courtesy of KIA MOTORS AMERICA, INC.

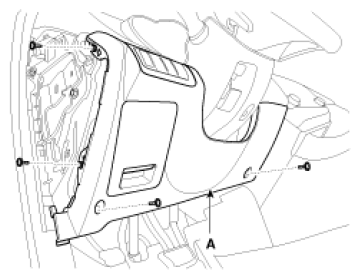

Loosen the mounting screw and then remove the crash pad lower cover (A).

Fig 2: Identifying Crash Pad Lower Cover And Mounting Screw
Courtesy of KIA MOTORS AMERICA, INC.

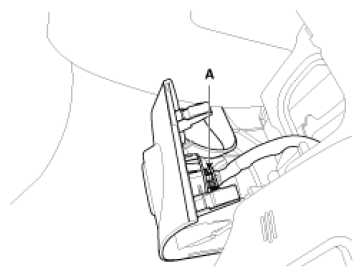

Disconnect the connector (A), and then remove the crash pad lower cover.

Fig 3: Identifying Crash Pad Lower Cover Connector (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

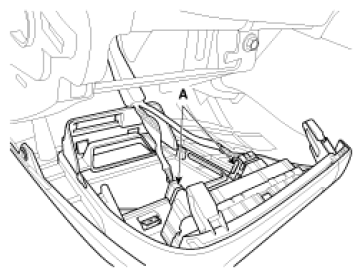

Fig 4: Identifying Crash Pad Lower Cover Connector (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

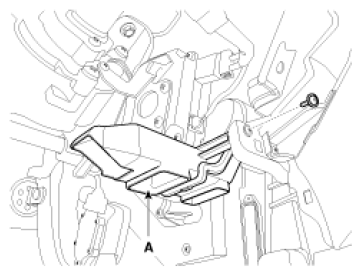

Remove the shower duct (A).

Fig 5: Identifying Shower Duct
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the mounting bolts and than remove the BCM.
(Refer to "BCM CONNECTOR TERMINALS ")

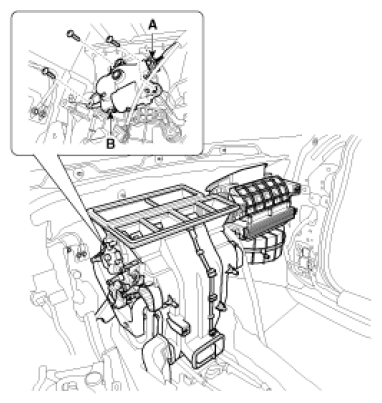

Disconnect the mode control actuator connector (A).
Loosen the mounting screw and then remove the mode control actuator (B).

Fig 6: Identifying Mode Control Actuator
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse order of removal.
