Repair procedures: Replacement

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative (-) battery terminal.
Loosen the mounting bolts and then remove the under cover (A).

Fig 1: Identifying Under Cover And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector and then remove the ambient temperature sensor (A).

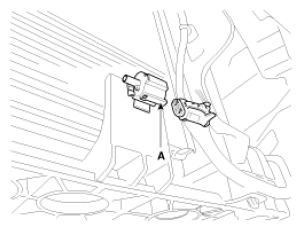

Fig 2: Identifying Ambient Temperature Sensor
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse order of removal.
