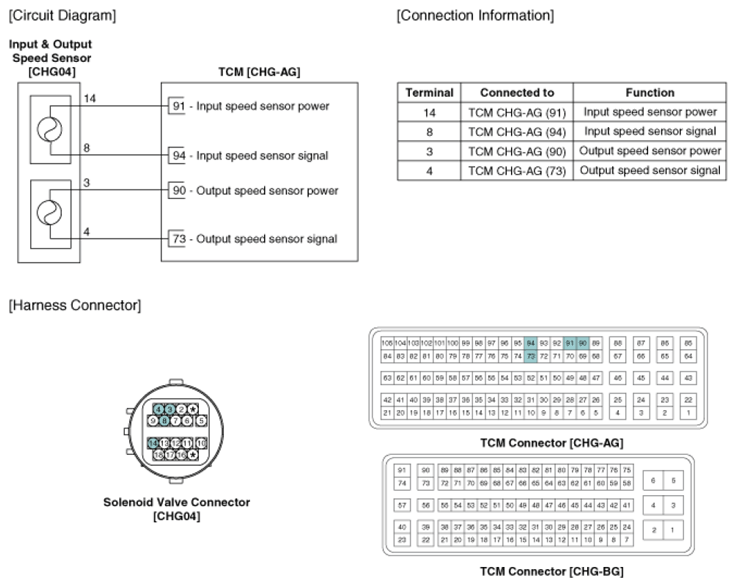

Home › Kia › 2012 › Optima LX, Automatic Trans › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 2.4L - Except HEV › Output Speed Sensor › Schematic Diagrams › Circuit Diagram
