Components And Components Location: Component

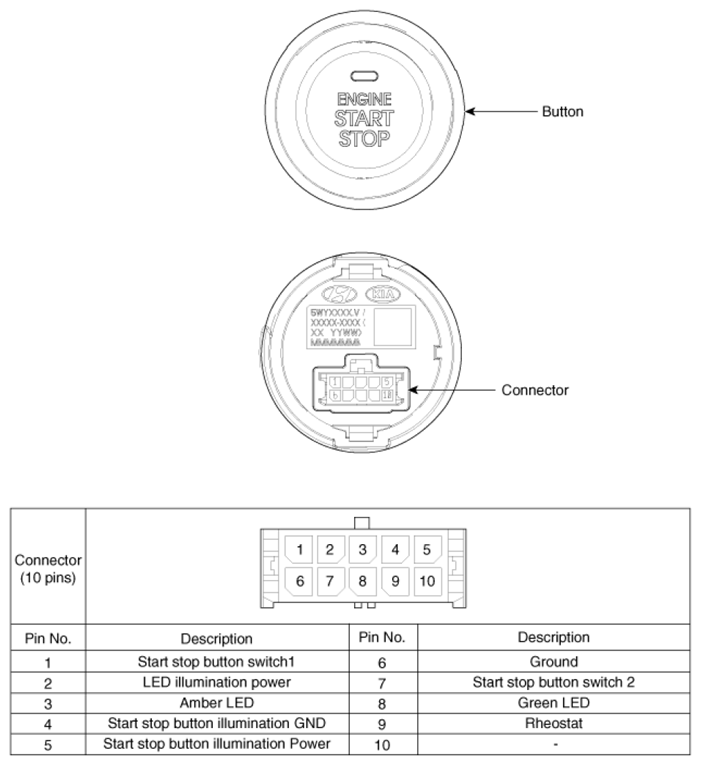

Fig 1: Start/Stop Button Connector Terminal Identification
G07381172Courtesy of KIA MOTORS AMERICA, INC.
