Ambient Temperature Sensor (ATS)
›
Schematic Diagrams
Schematic Diagrams

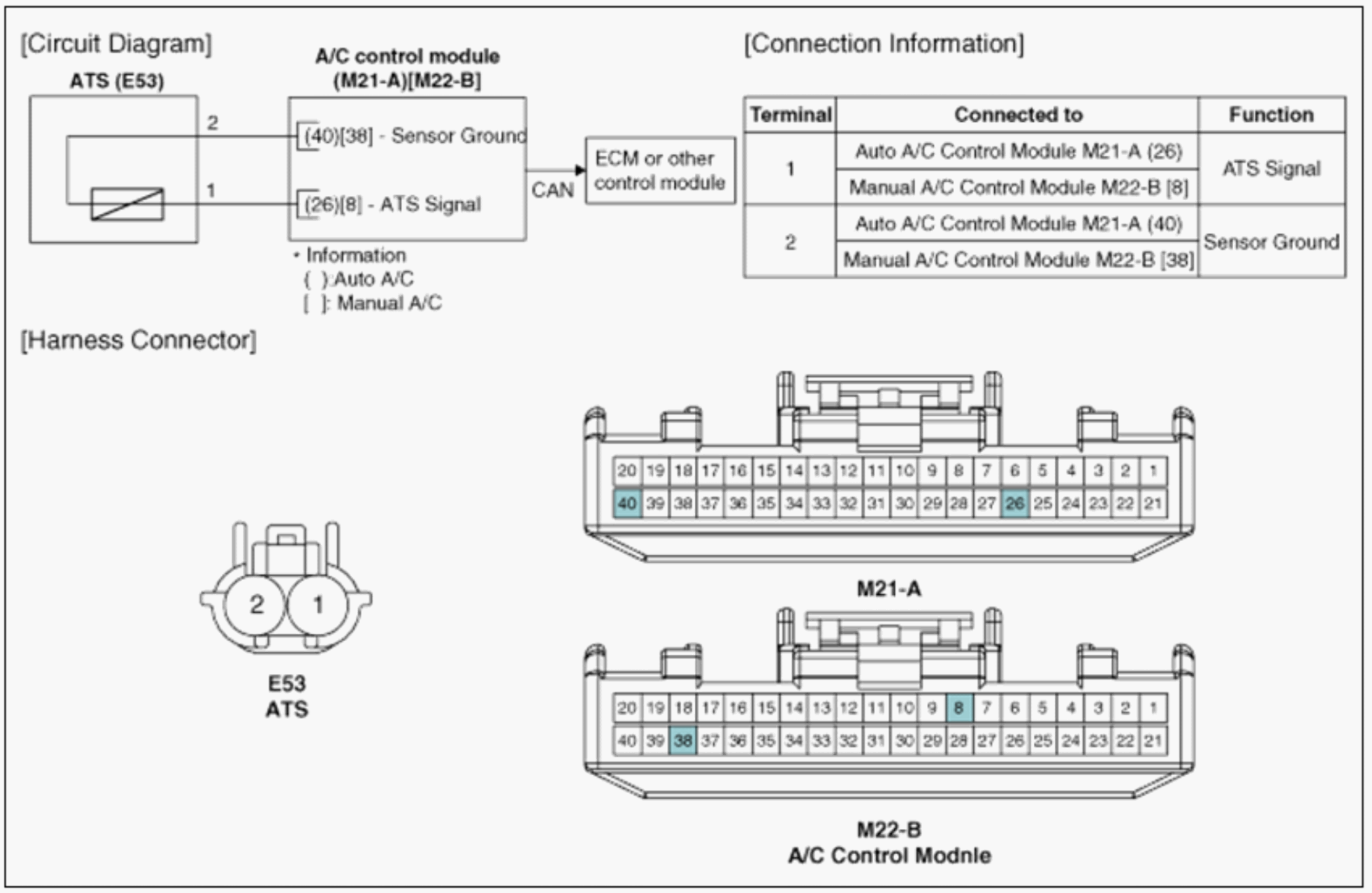

Fig 1: Identifying IATS And A/C Contol Module Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
