Boost Pressure Sensor (BPS): Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the boost pressure sensor connector (A).
  3. Remove the installation bolts (B), and then remove the sensor from the surge tank.

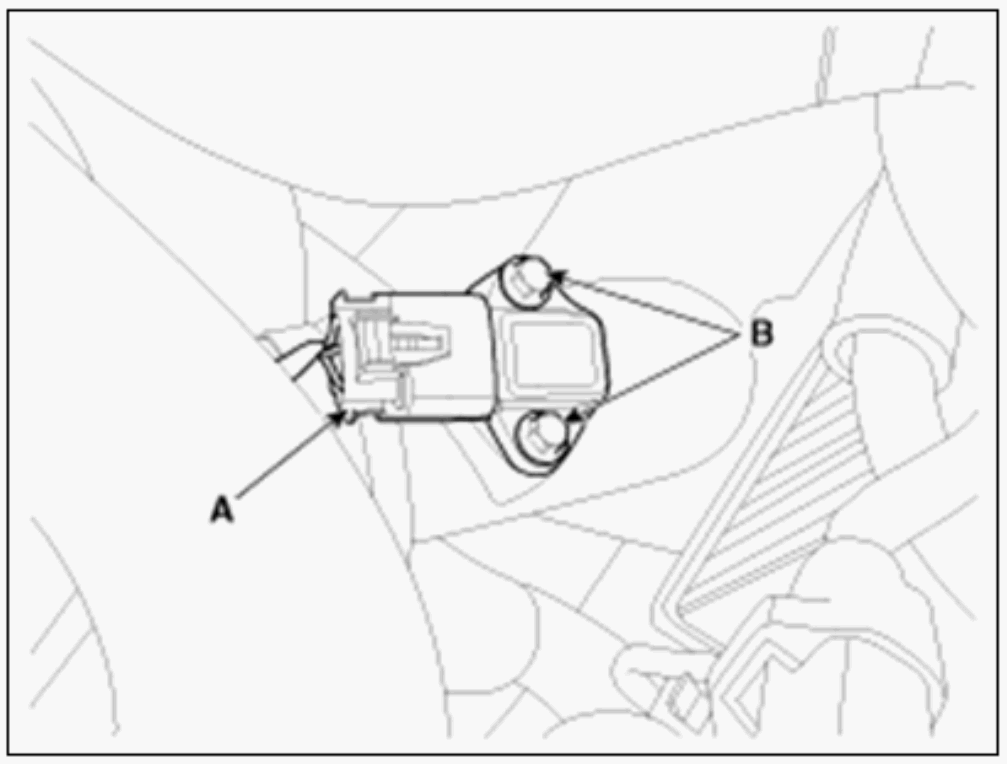

    4. Fig 1: Boost Pressure Sensor (BPS) Component Location
    G00535117Courtesy of KIA MOTORS AMERICA, INC.
