Engine Control System - 2.0L
›
Purge Control Solenoid Valve (PCSV)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

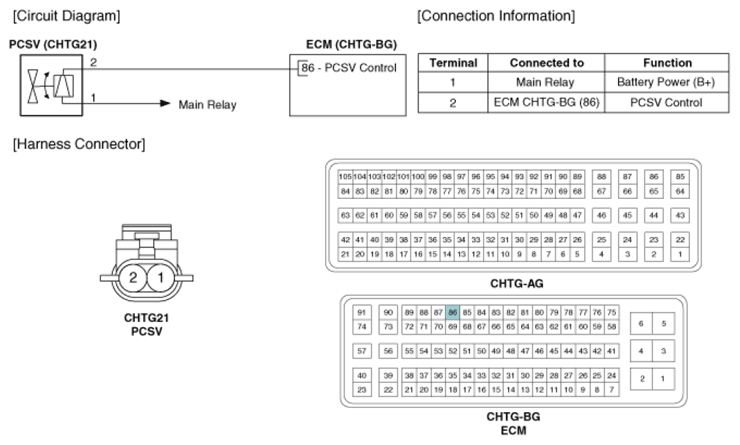

Fig 1: Purge Control Solenoid Valve Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
