Kia
›
2012
›
Optima SX
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 2.0L
›
RCV Control Solenoid Valve
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

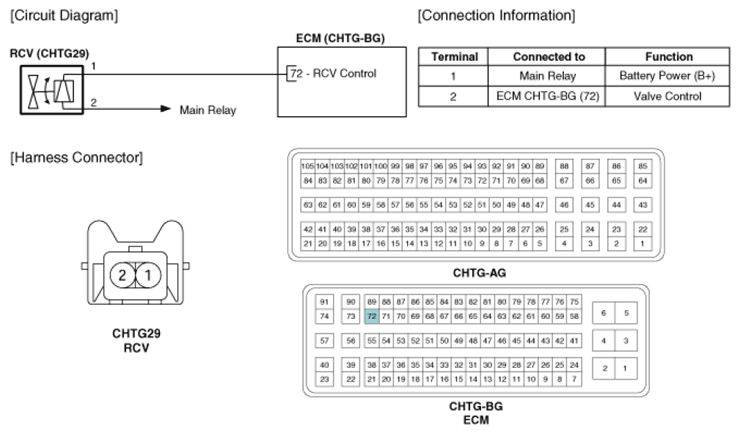

Fig 1: Recirculation Valve Control Solenoid Valve Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
