Section 53 (Automatic Transaxle Control System - 2.0L)
›
Input Speed Sensor
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

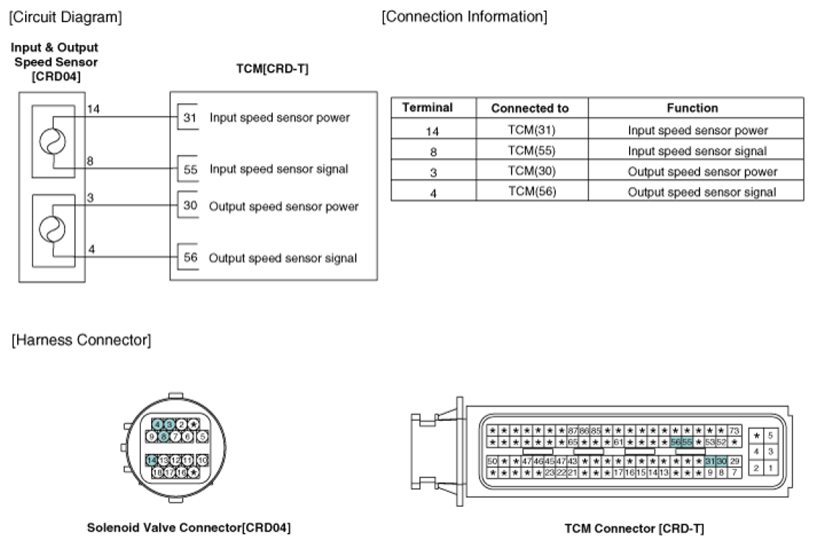

Fig 1: Input & Output Speed Sensor Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
