Chart 4

WARNING: This page is about a different variant/trim than selected.

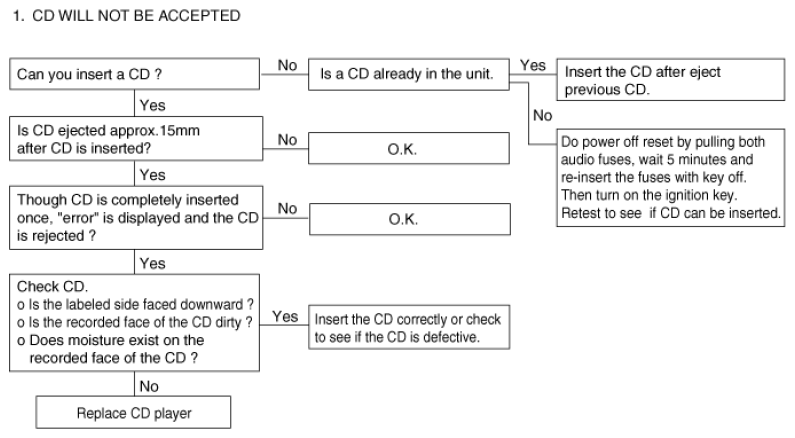

Fig 1: Troubleshooting Work Flow Chart (CD Not Accepted)

Courtesy of KIA MOTORS AMERICA, INC.

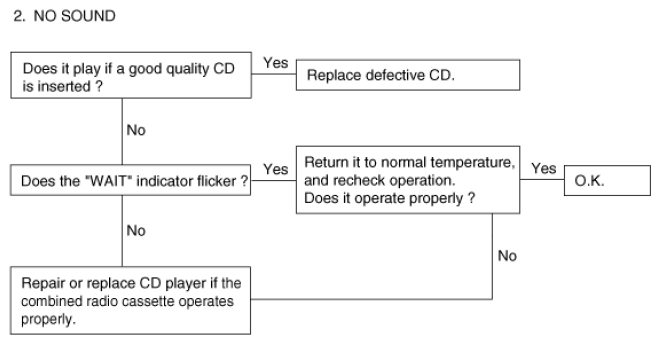

Fig 2: Troubleshooting Work Flow Chart (No Sound)

Courtesy of KIA MOTORS AMERICA, INC.

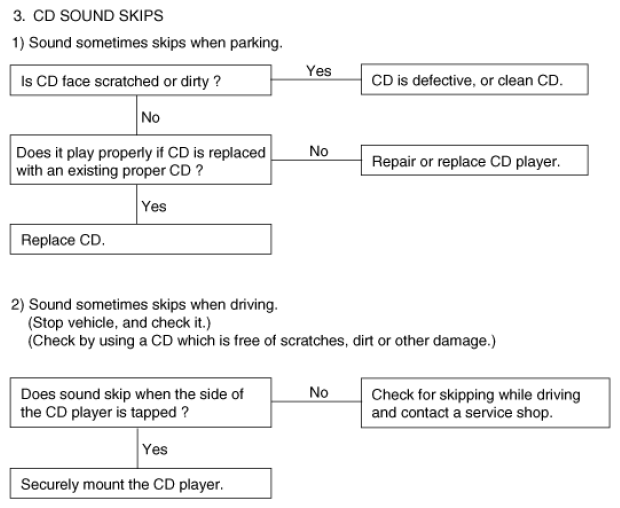

Fig 3: Troubleshooting Work Flow Chart (CD Sound Skips)

Courtesy of KIA MOTORS AMERICA, INC.

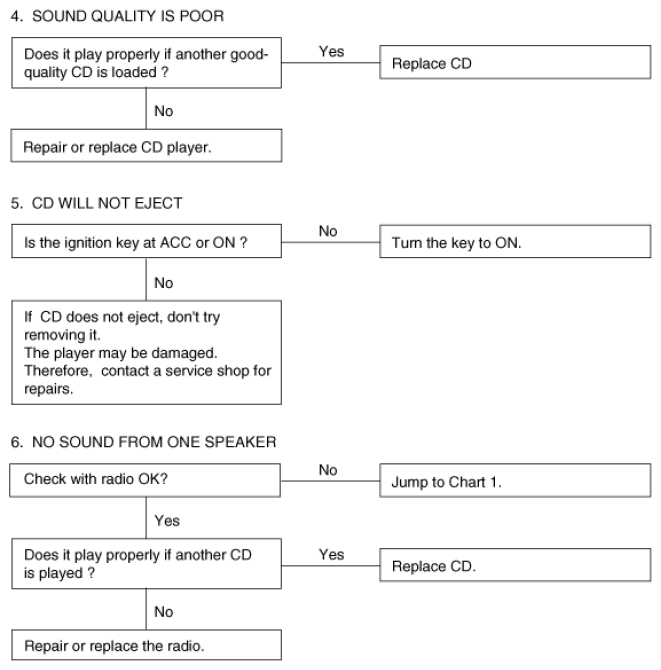

Fig 4: Troubleshooting Work Flow Chart (Sound Quality)

Courtesy of KIA MOTORS AMERICA, INC.
