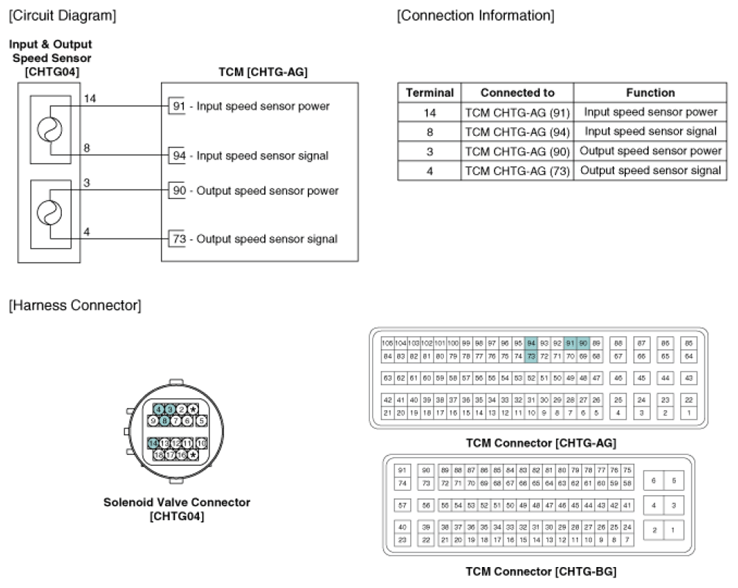

Home › Kia › 2012 › Optima SX › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 2.0L › Input Speed Sensor › Schematic Diagrams › Circuit Diagram
