Repair procedures: Removal

Disconnect the battery negative (-) cable.
Disconnect the battery sensor connector.
Remove the battery sensor cable after removing the bolts (A).

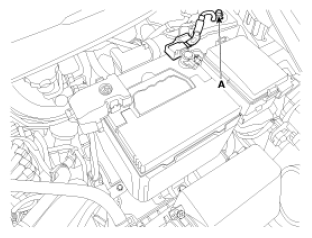

Fig 1: Identifying Battery Sensor Cable Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
