Starting System: Troubleshooting

NOTE:

The battery must be in good condition and fully charged for this troubleshooting.

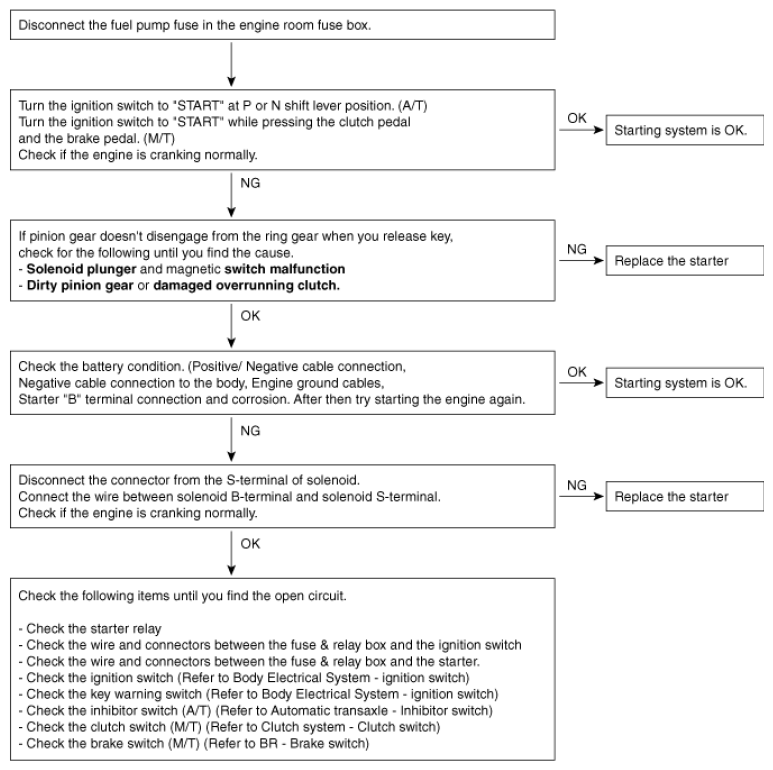

Fig 1: Starting System Troubleshooting Work Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
