Rio EX, 4D Hatchback
›
Repair and Diagnosis
›
Engine Mechanical
›
Engine Lubrication System
›
Engine Oil
›
Flow Diagram
›
Engine Oil Flow Diagram
Engine Oil Flow Diagram

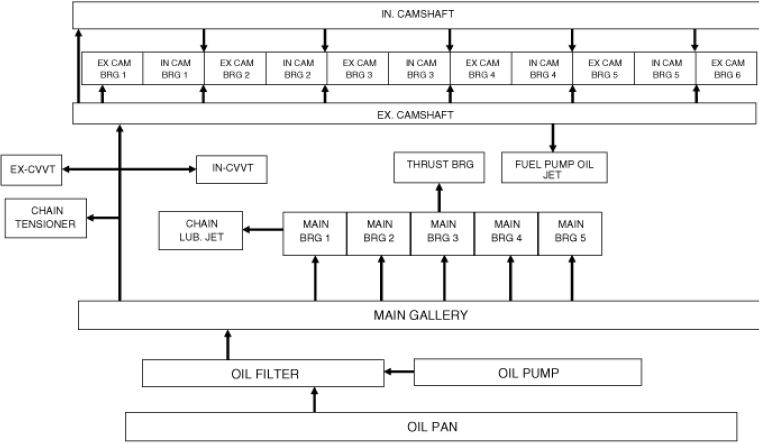

Fig 1: Engine Oil Flow Diagram
Courtesy of KIA MOTORS AMERICA, INC.

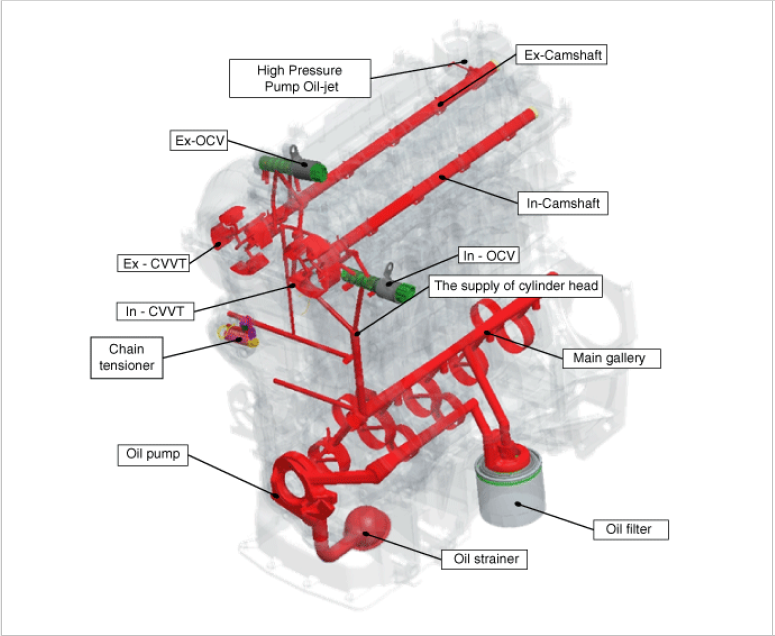

Fig 2: Engine Oil Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
