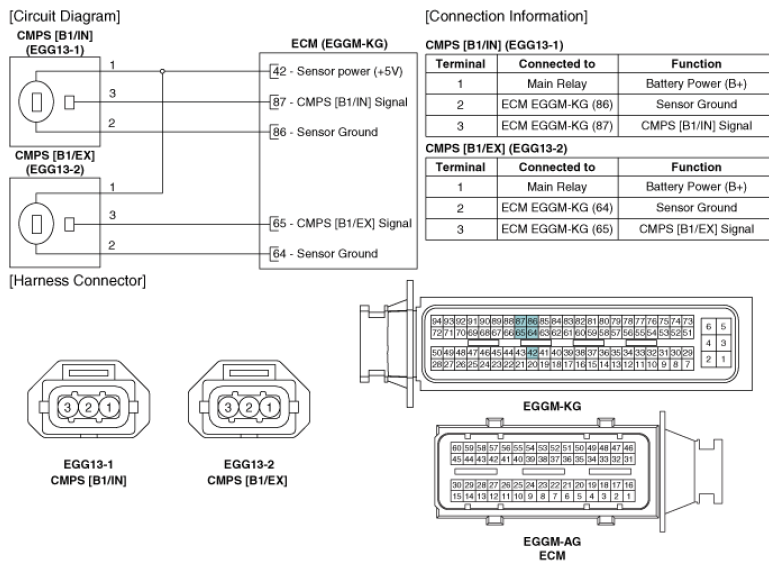

Home › Kia › 2012 › Rio EX, 4D Hatchback › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Camshaft Position Sensor (CMPS) › Schematic Diagrams › Circuit Diagram › (M/T)
