Rio EX, 4D Hatchback
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System
›
Crankshaft Position Sensor (CKPS)
›
Schematic Diagrams
›
Circuit Diagram
›
(M/T)
Circuit Diagram: (M/T)

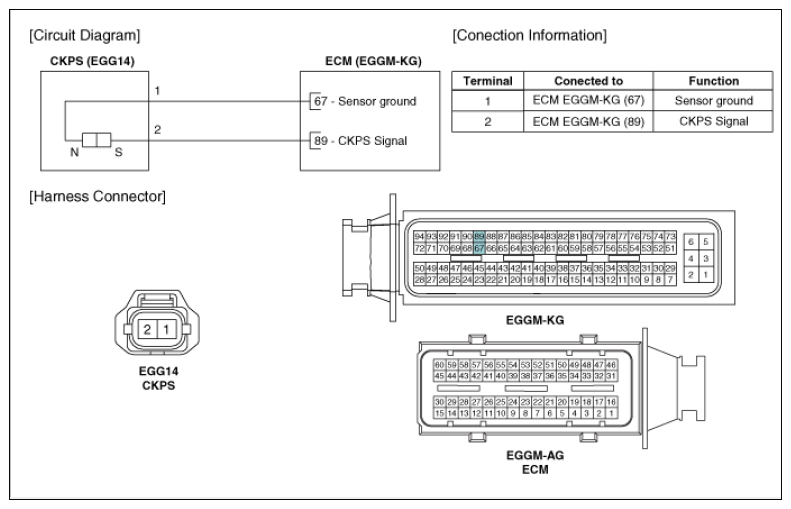

Fig 1: Crankshaft Position Sensor - Circuit Diagram (M/T)
