Inhibitor Switch
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

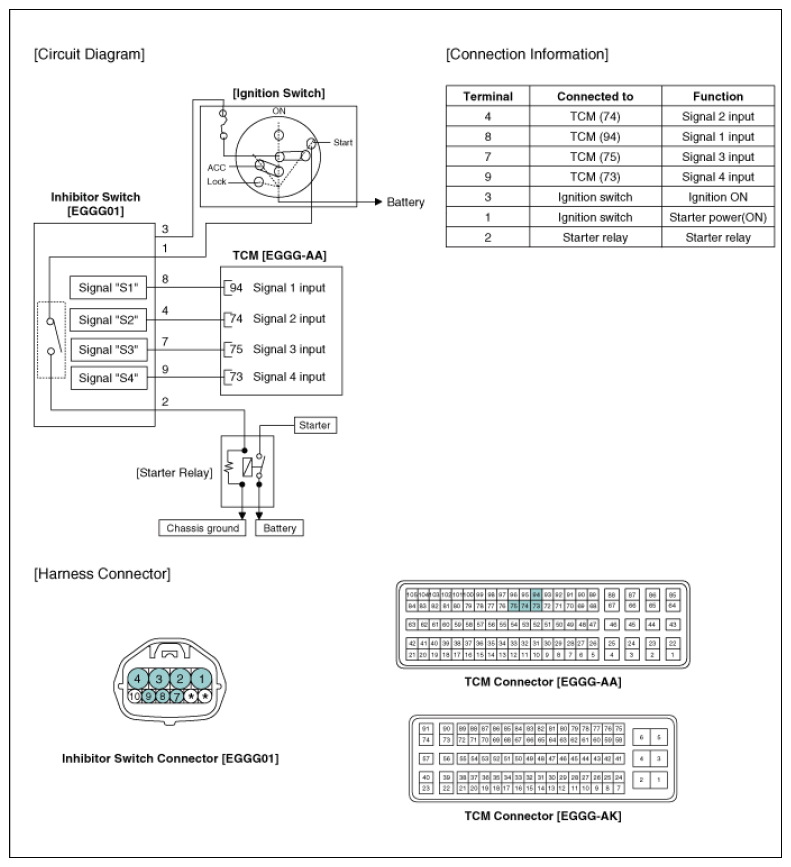

Fig 1: Inhibitor Switch Monitors Lever's Position - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
