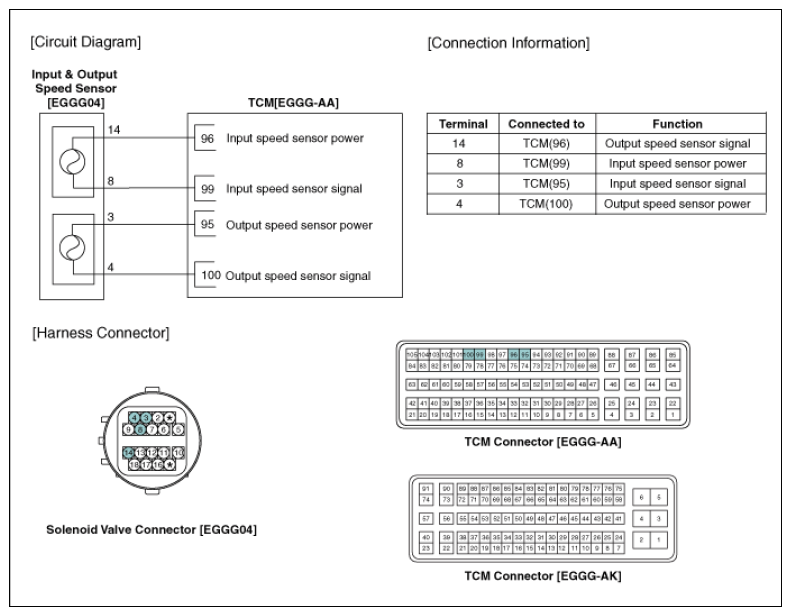

Home › Kia › 2012 › Rio EX, 4D Hatchback › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System › Input Speed Sensor › Schematic Diagrams › Circuit Diagram
