Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

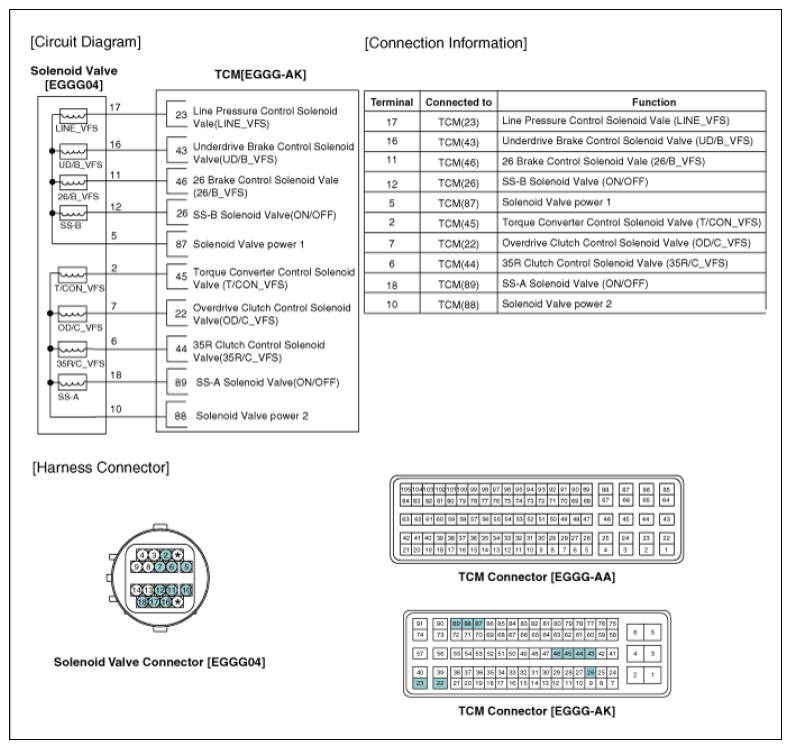

Fig 1: Line Pressure Control Solenoid Valve - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
